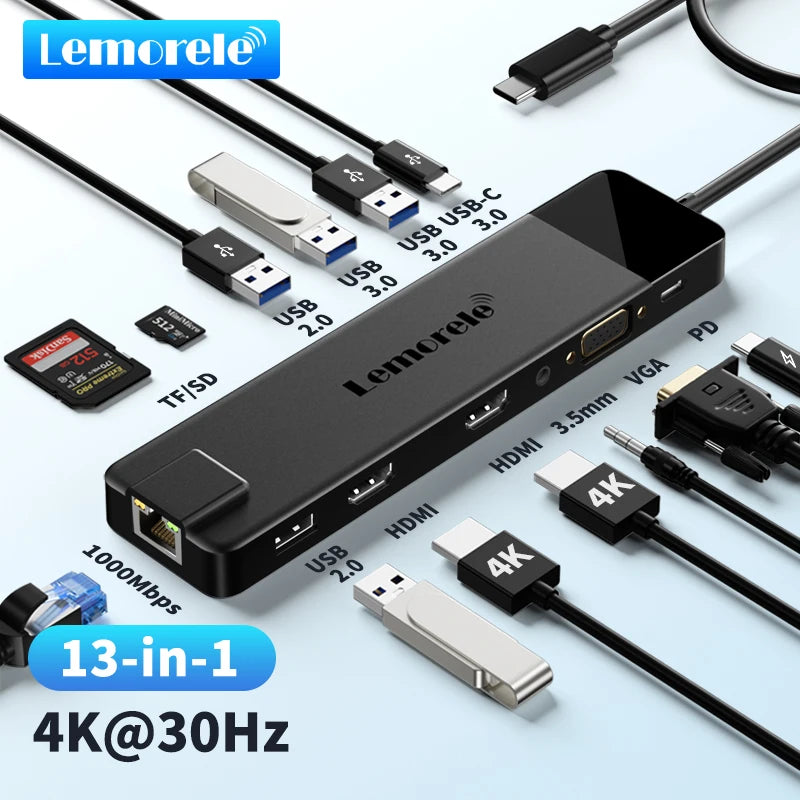

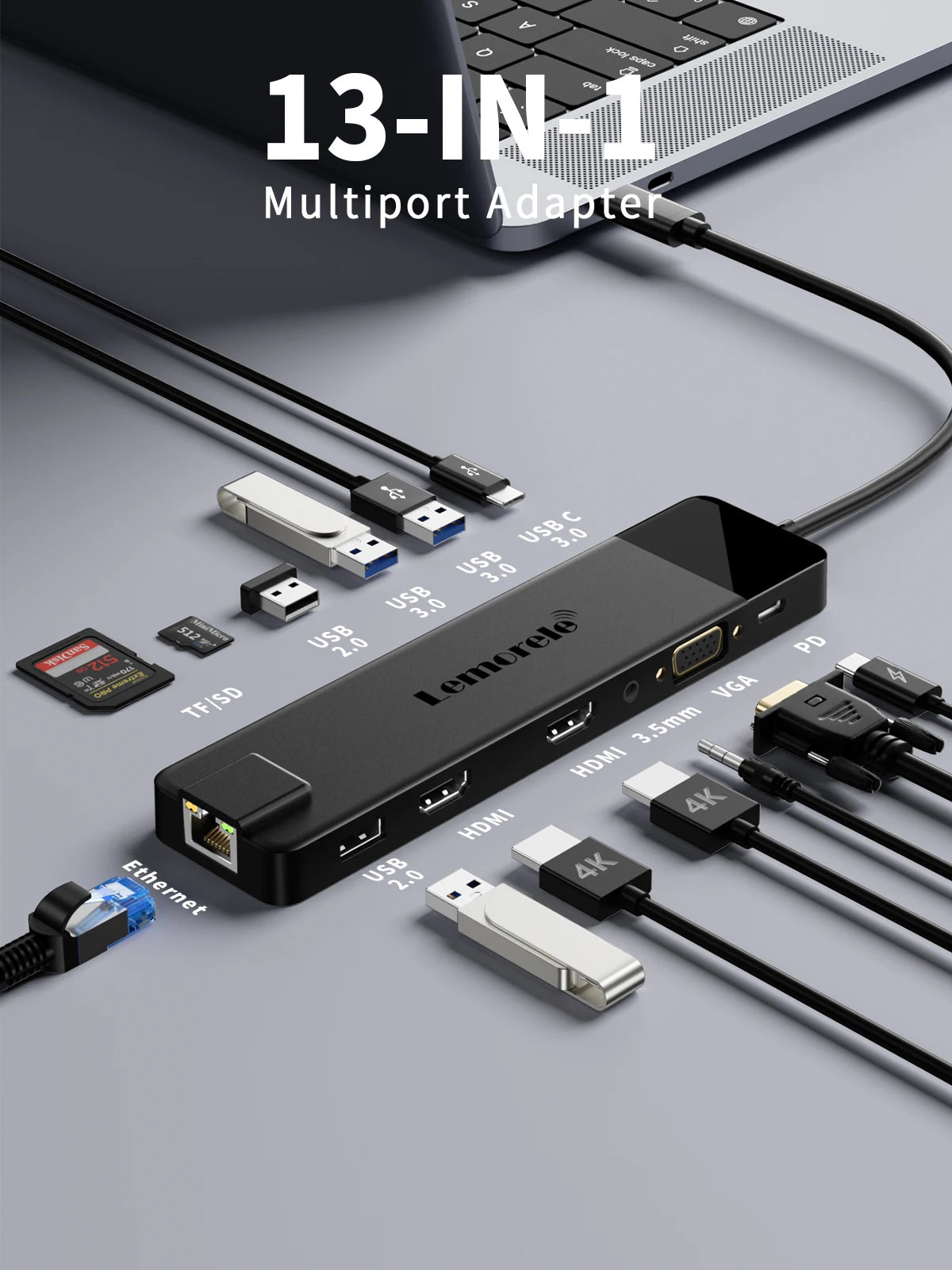

Product Interface:

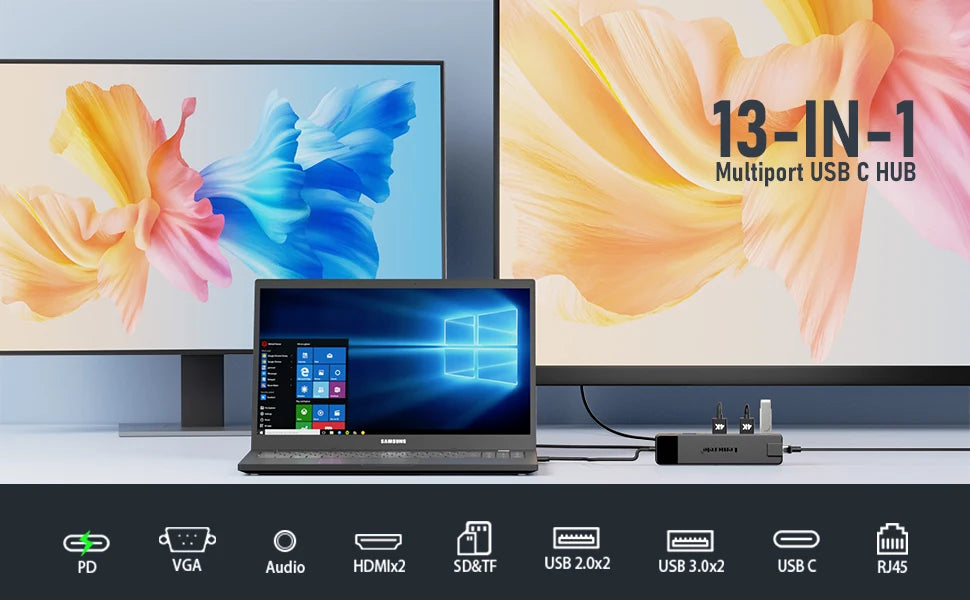

13-in-1：

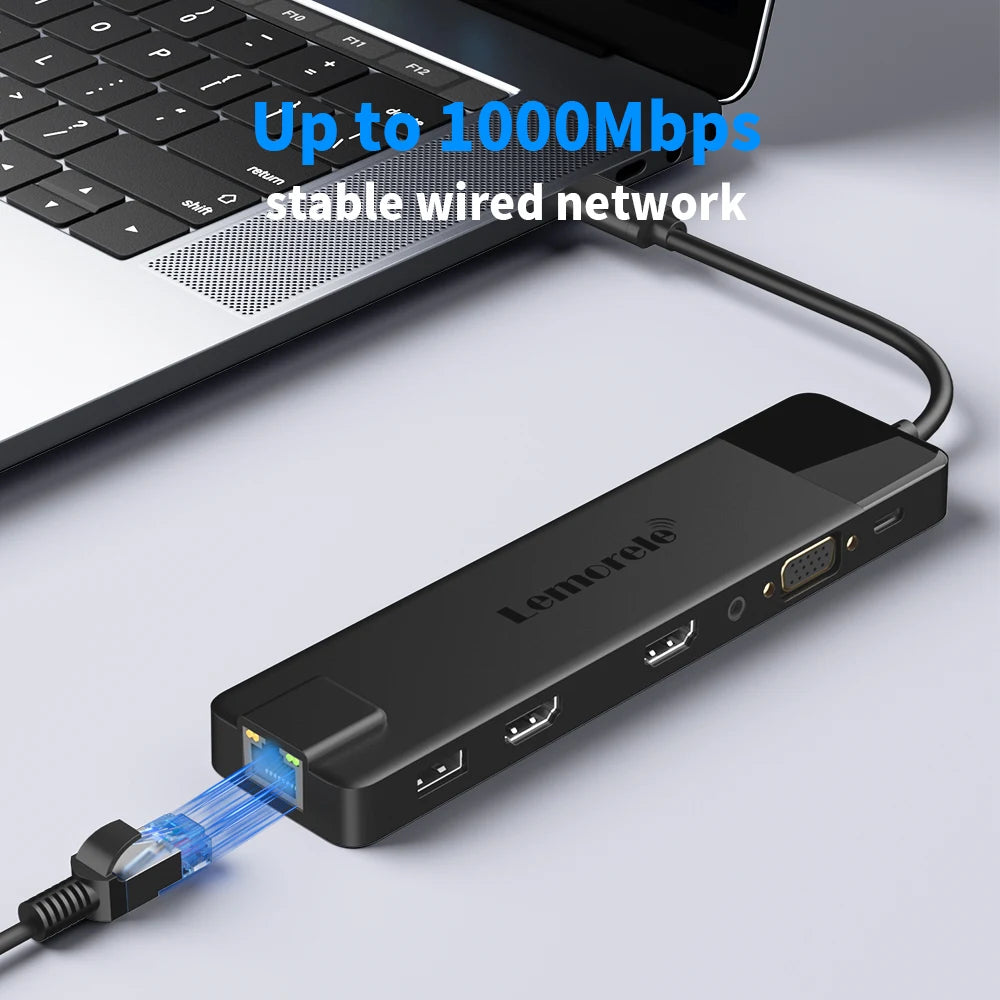

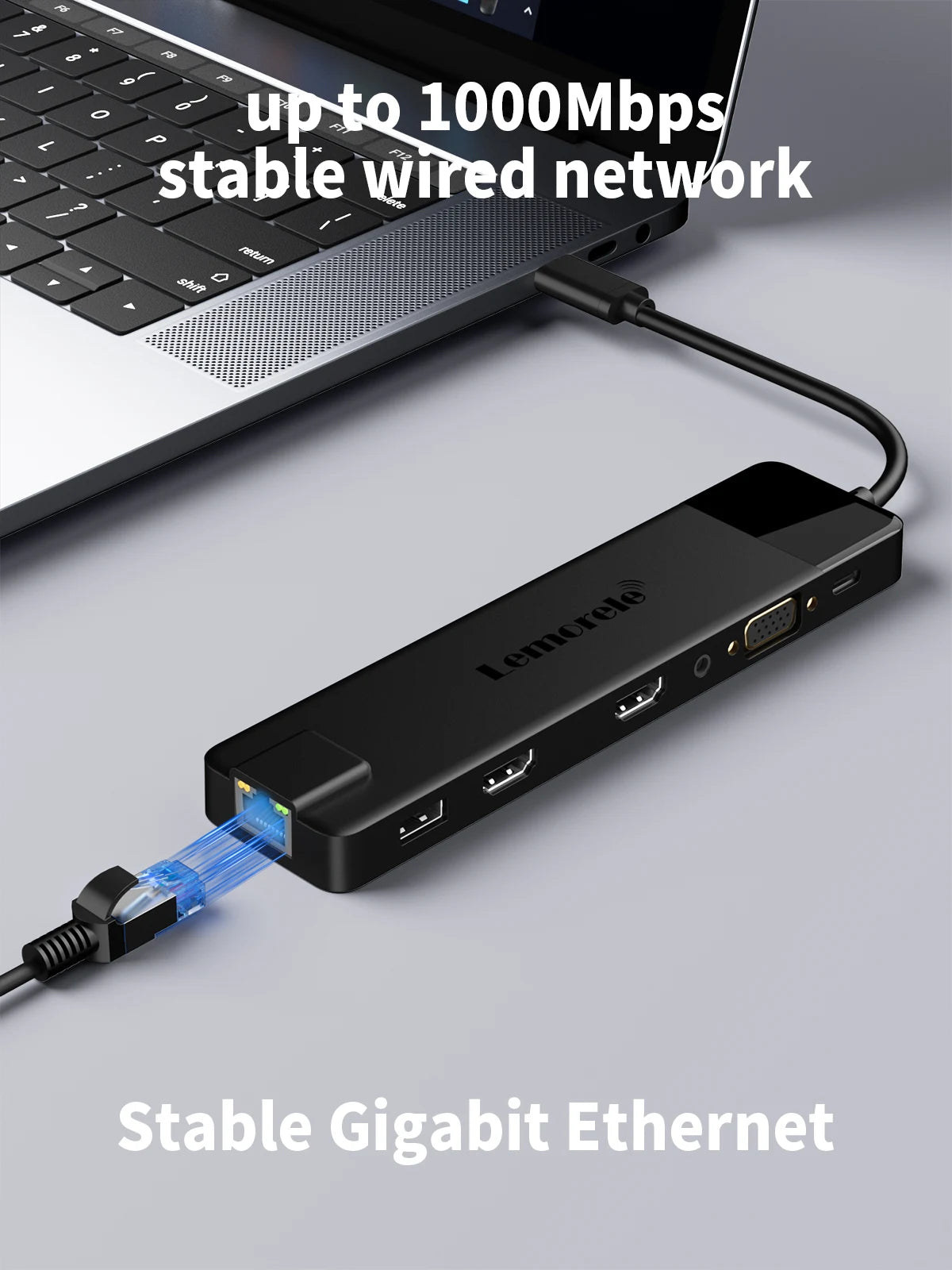

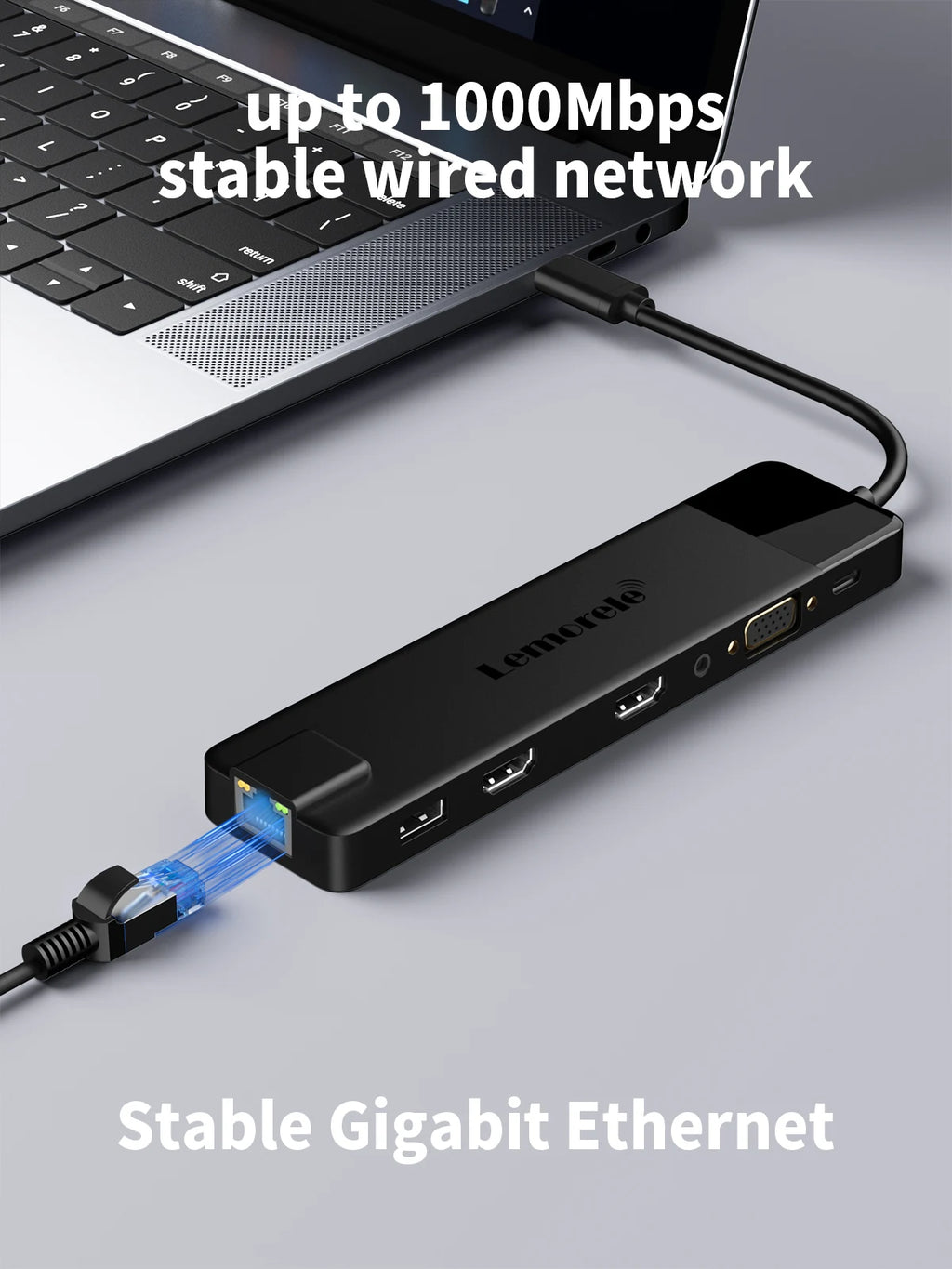

Ethernet interface:          RJ45-1000M

Screen interface:              2*HDMI-4K@30Hz + VGA-1080P@60Hz （The two HDMI are used together with only 1080P output）

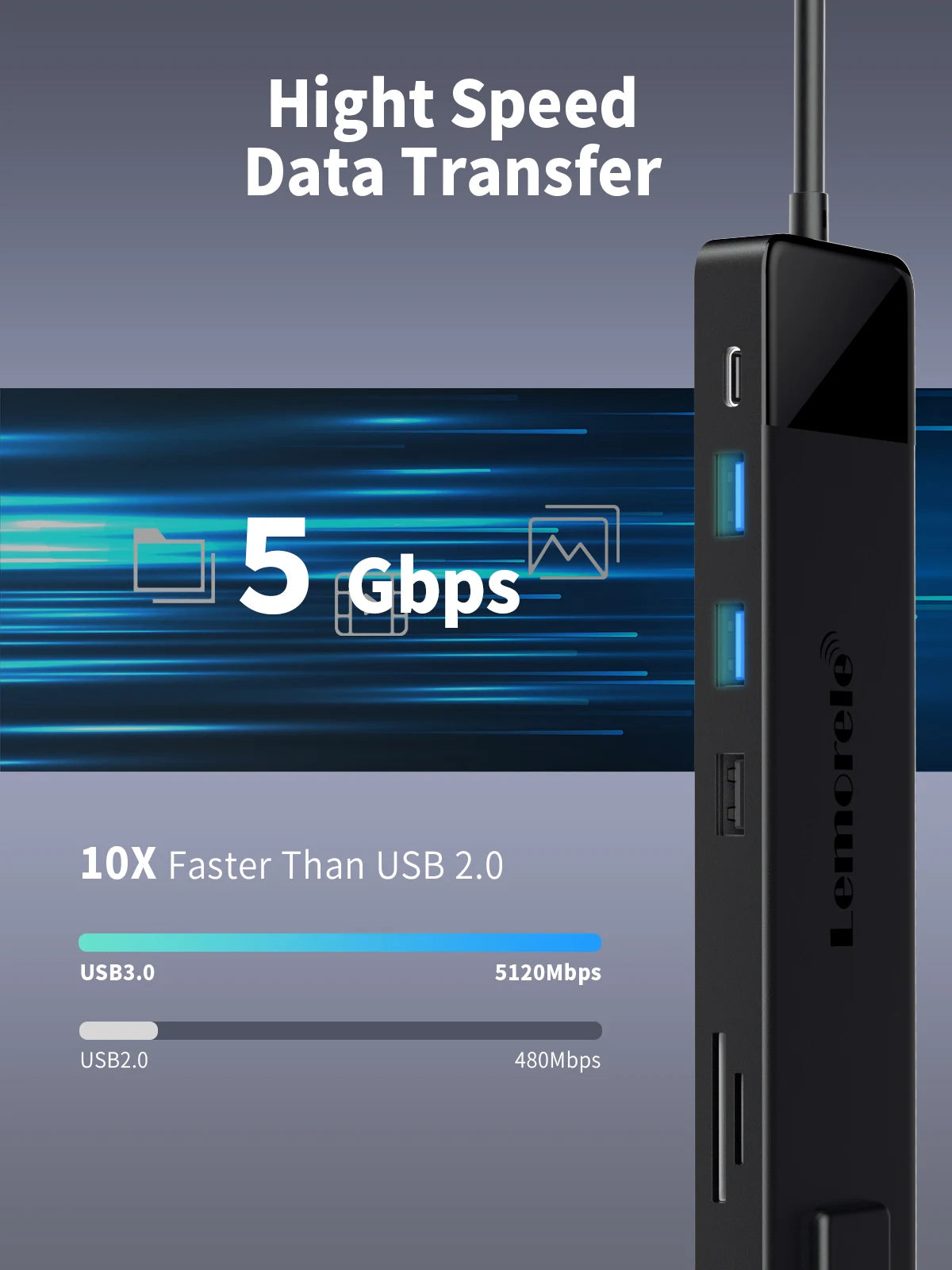

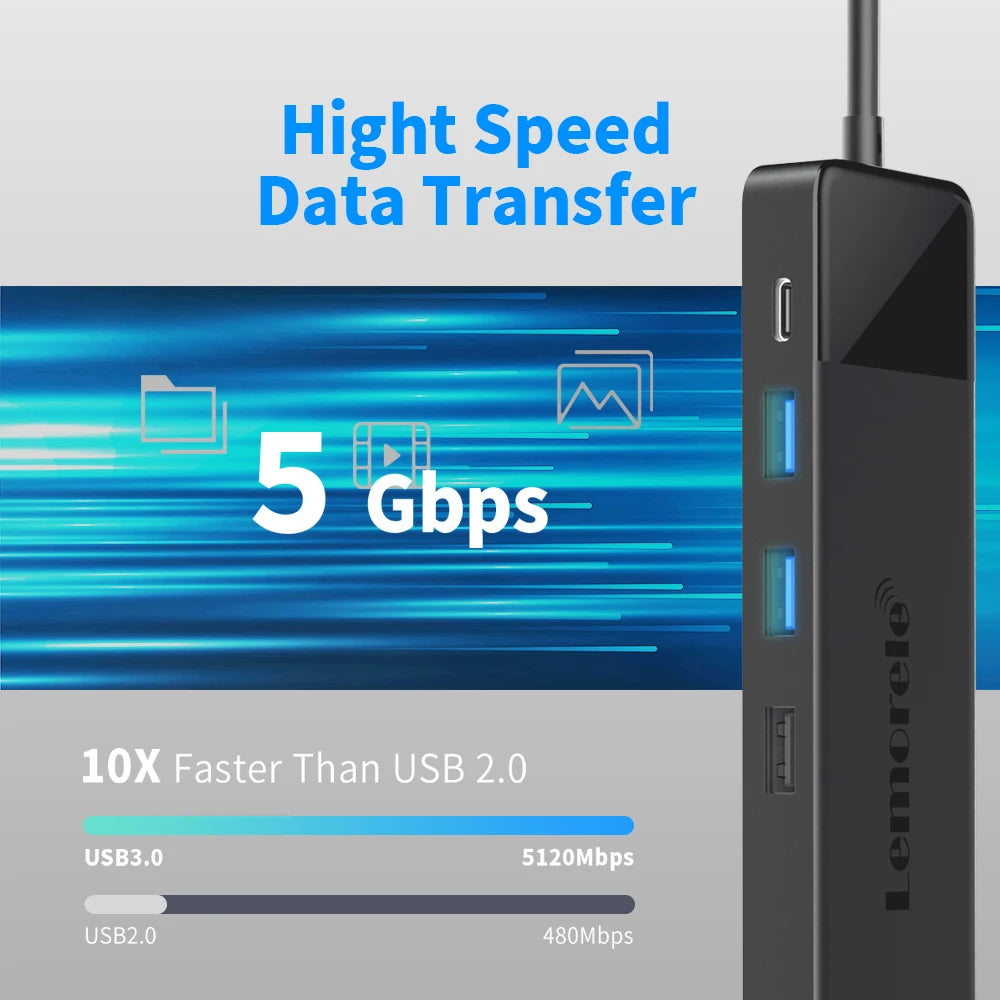

USB port:                           2*USB-A-3.0 + 2*USB-A-2.0 + 1* USB-C-3.0

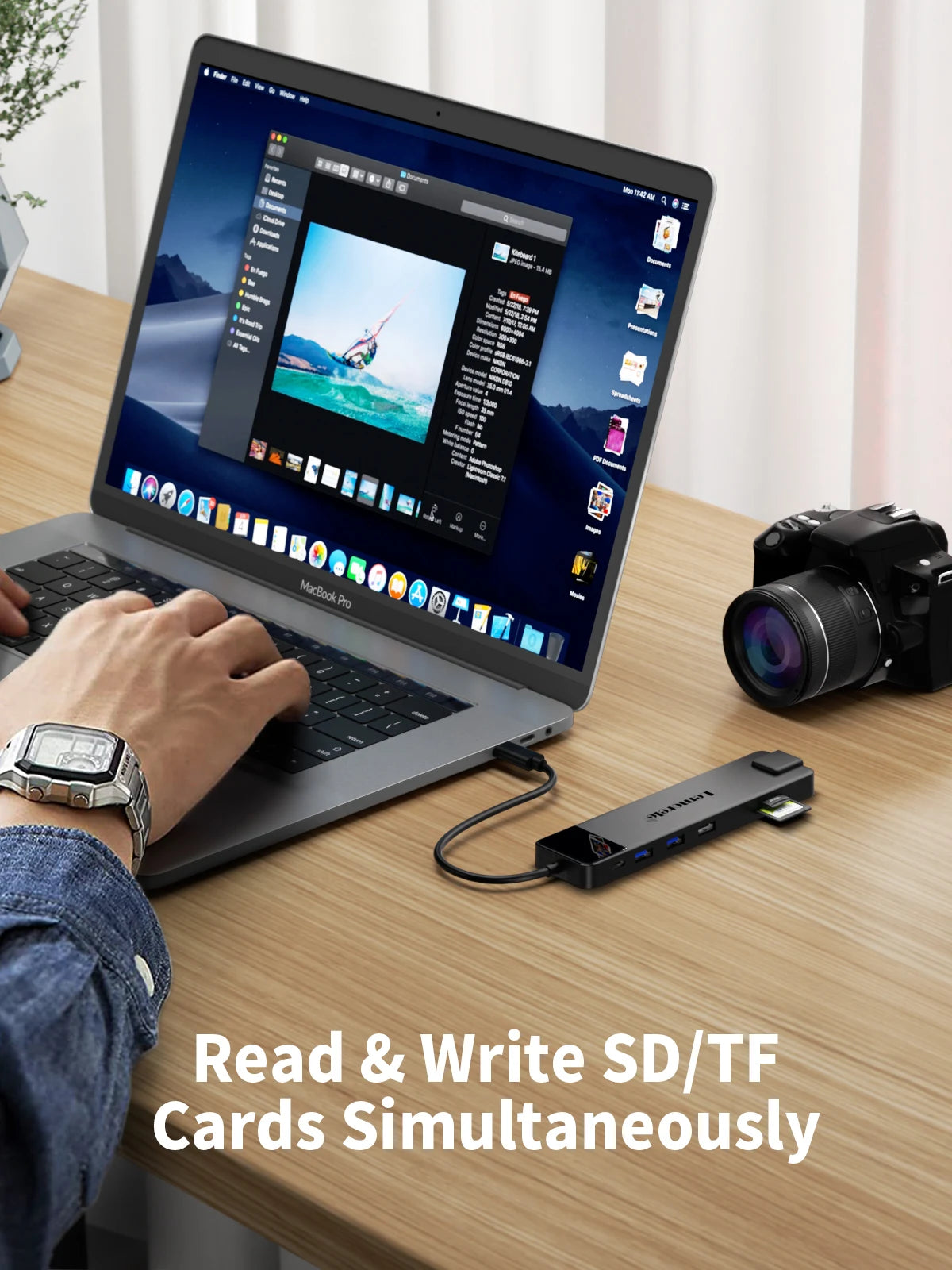

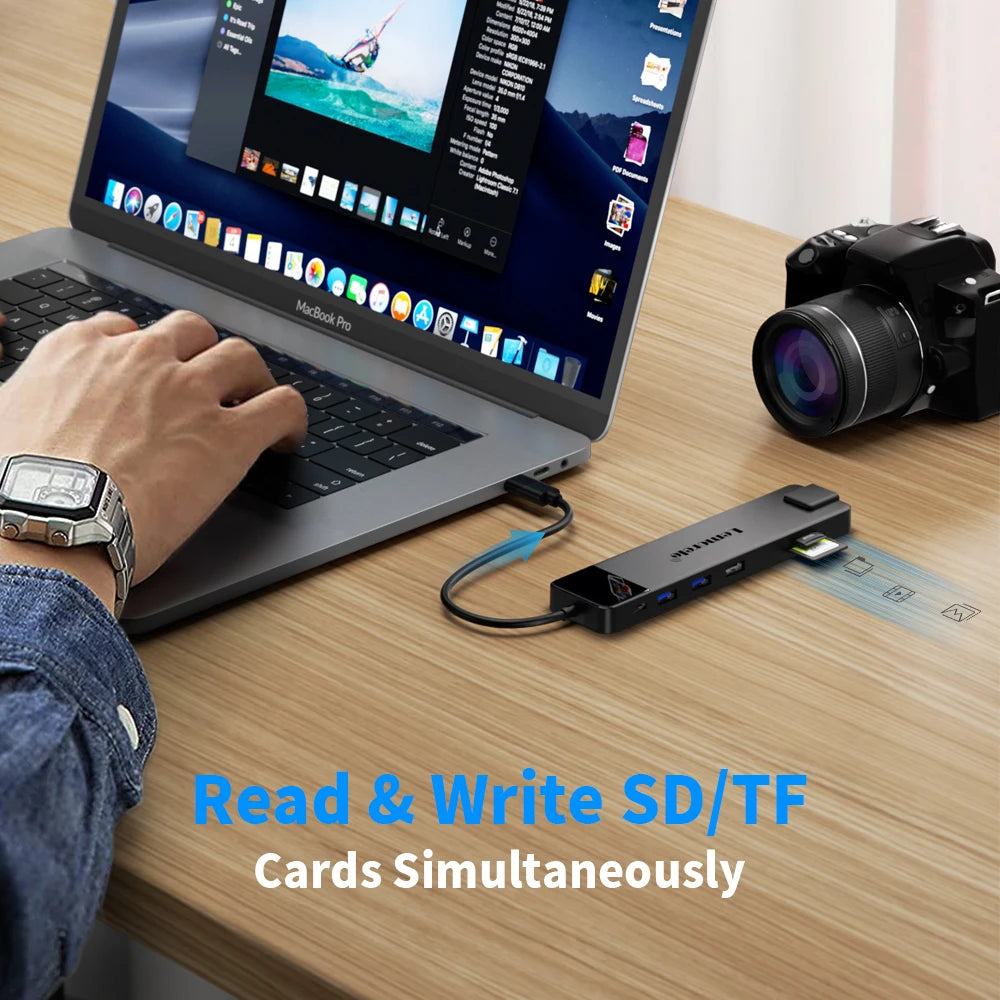

Memory card interface:   SD + TF (support simultaneous operation)

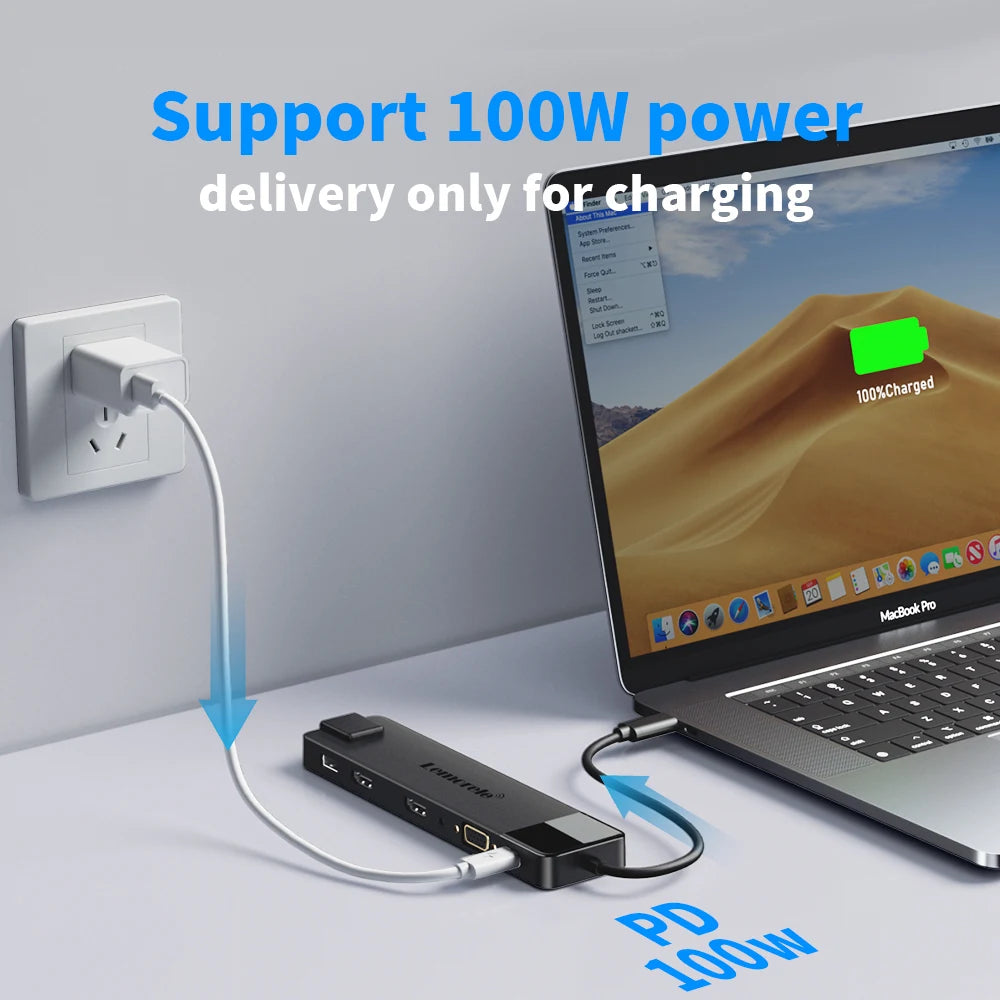

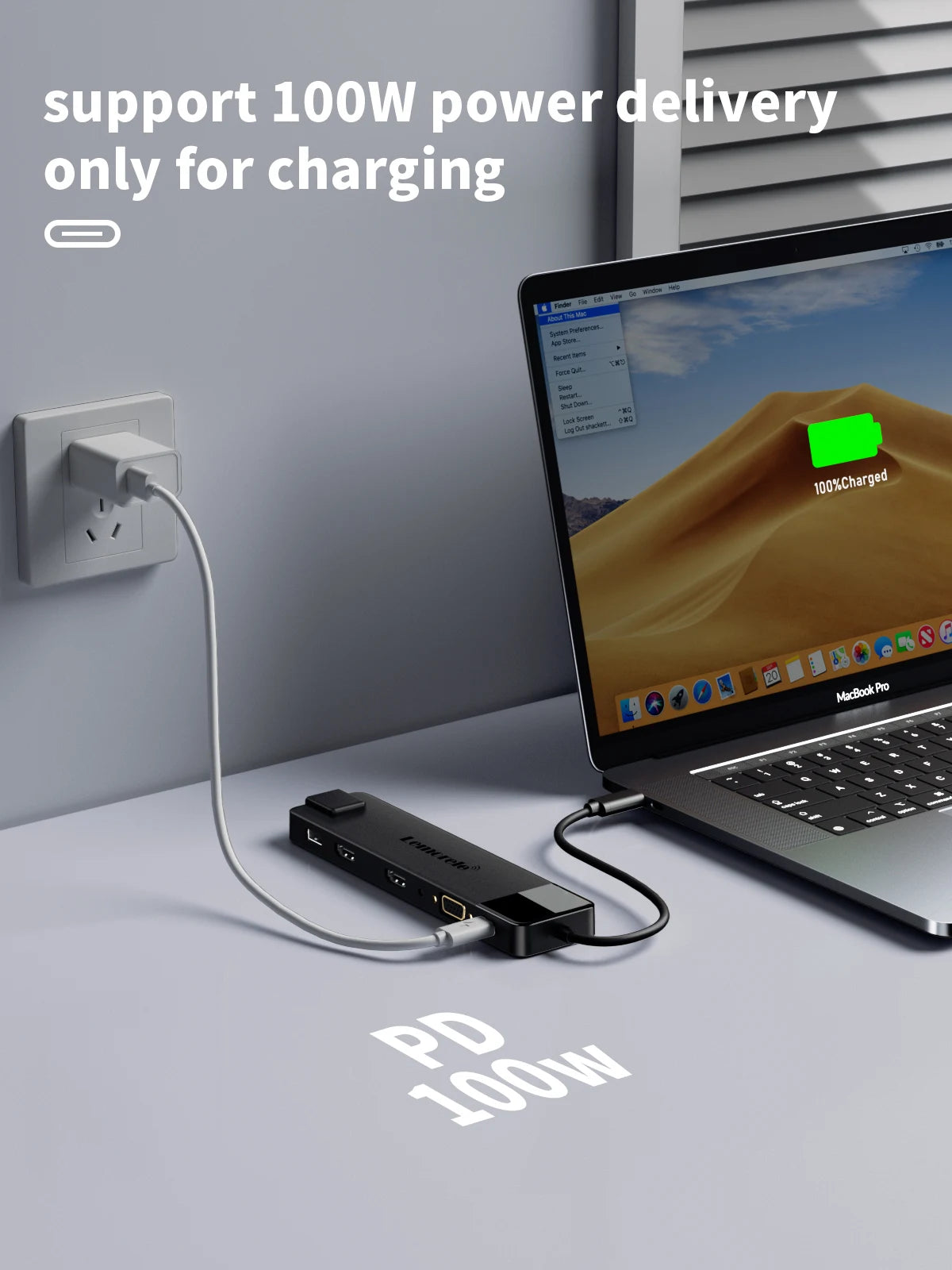

Power connector:             USB-C-PD-100W

Audio interface:               3.5mm AUDIO （Only audio output is supported）

Note

When you use the laptop connection docking station to use HDMI and PD power supply interfaces, please make sure that your notebook USB-C port supports audio and video output and power supply at the same time

Otherwise, the HDMI interface or PD power supply interface cannot be used

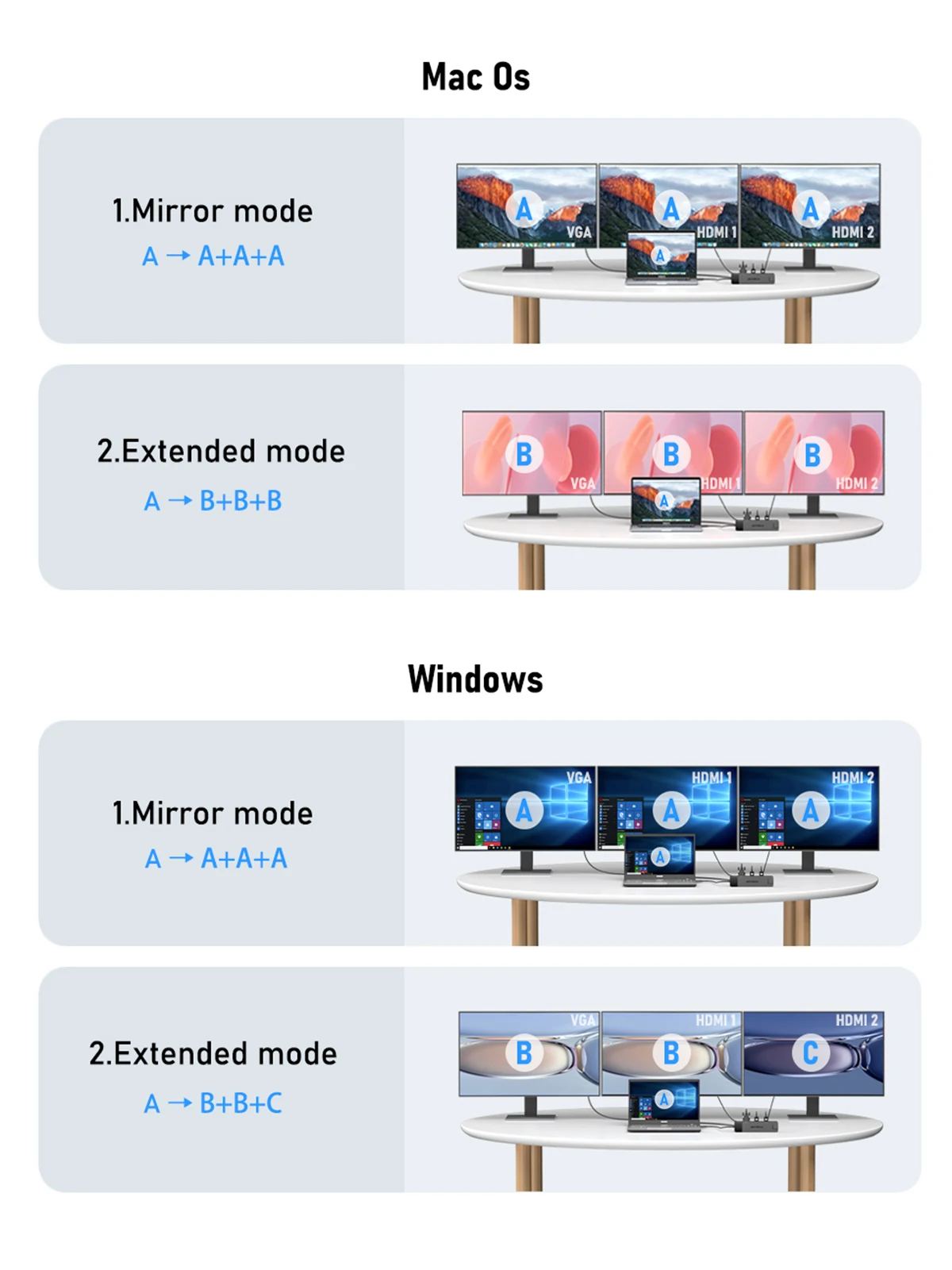

Supports two modes of screen expansion and screen copying

Windows systems support A to A+A+A, A to B+B+C In copy mode, three screens are supported at the same time In extended mode, VGA will be consistent with HDMI

Windows special note: When using two HDMI at the same time, the picture quality is recognized as 1080P, can not reach 4K, when using only one HDMI, the picture quality is 4K.

Mac systems support A to A+A+A, A to B+B+B

All three screens display the same content in both duplicate and extended modes

Picture quality is 4K on all three screens
